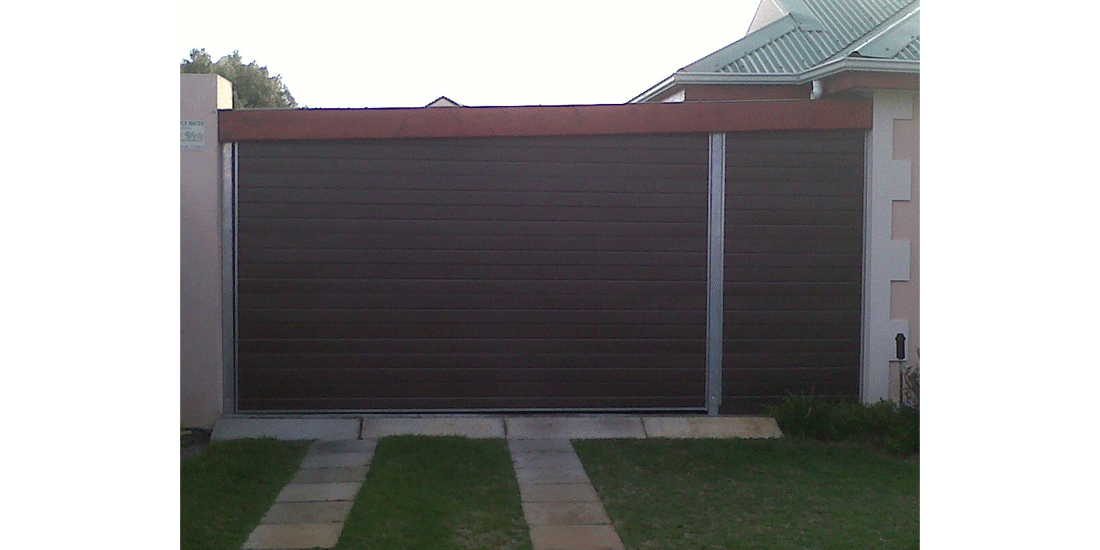

Double bronze horizontal slatted aluzinc tip up door with fixed side panel and galvanised steel posts
Double bronze horizontal slatted aluzinc tip up door with fixed side panel and galvanised steel posts
Double bronze horizontal slatted aluzinc tip up door with fixed side panel and galvanised steel posts
Double bronze raised & fielded aluzinc tip up door
Double bronze raised & fielded aluzinc tip up door
Double bronze raised & fielded aluzinc tip up door
Double white horizontal slatted aluzinc tip up door with exposed styles
Double white horizontal slatted aluzinc tip up door with exposed styles
Double white horizontal slatted aluzinc tip up door with exposed styles
Double white horizontal slatted aluzinc tip up door
Double white horizontal slatted aluzinc tip up door
Double white horizontal slatted aluzinc tip up door
Single bronze horizontal slatted aluzinc tip up door with padlock
Single bronze horizontal slatted aluzinc tip up door with padlock
Single bronze horizontal slatted aluzinc tip up door with padlock

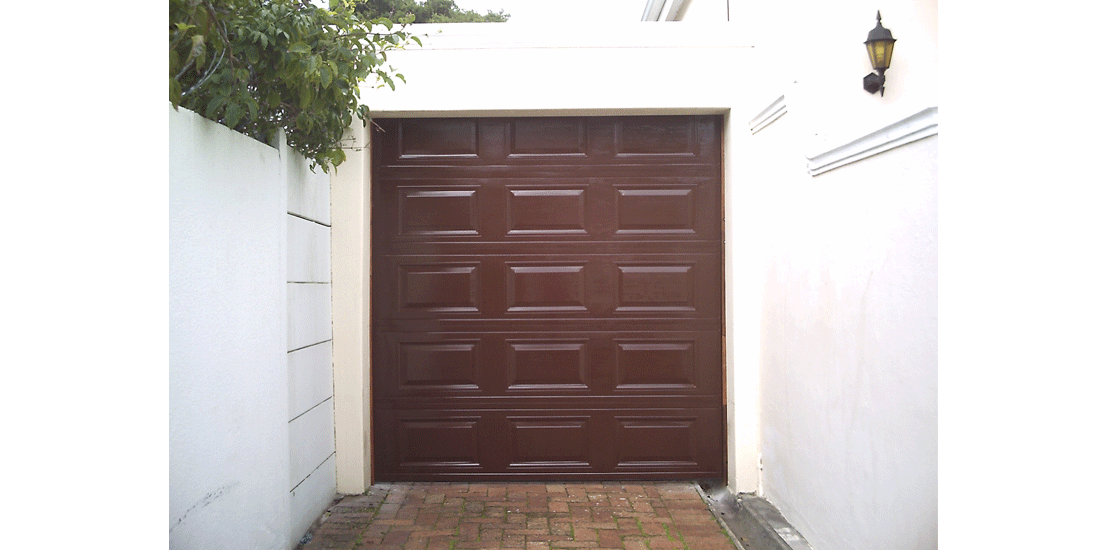

Single brown raised & fielded aluzinc tip up door - Supplier B
Single brown raised & fielded aluzinc tip up door - Supplier B
Single brown raised & fielded aluzinc tip up door - Supplier B

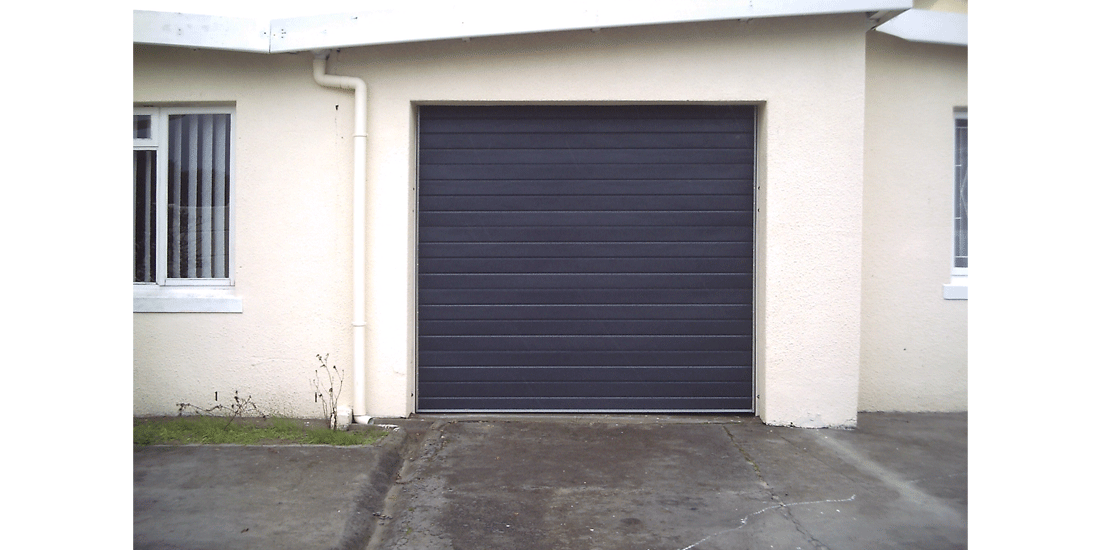

Single charcoal horizontal slatted aluzinc tip up door
Single charcoal horizontal slatted aluzinc tip up door
Single charcoal horizontal slatted aluzinc tip up door

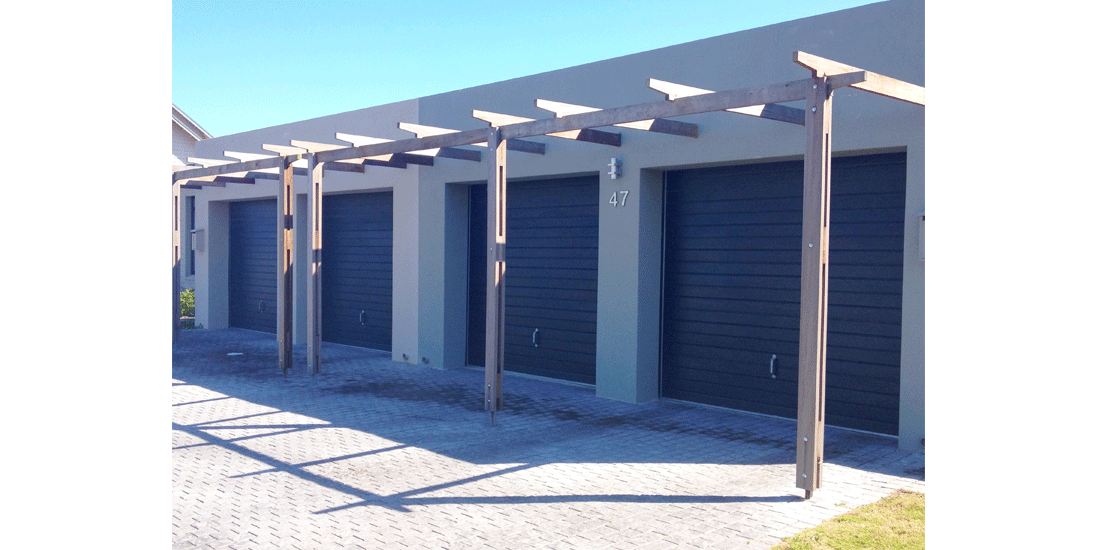

Single charcoal horizontal slatted aluzinc tip up doors with handles & padlocks
Single charcoal horizontal slatted aluzinc tip up doors with handles & padlocks
Single charcoal horizontal slatted aluzinc tip up doors with handles & padlocks

Aluzinc is mild steel, coated in an aluzinc mixture, 45% aluminium 55% zinc, the paint is then baked onto the steel, creating two layers of protection for the mild steel.

Aluzinc doors are highly recommended as the doors are light weight, very strong, do not fade and require almost no maintenance or up keep – if the door is dirty you can simply hose it down with water.

Aluzinc Tip Up Garage Door Sizes

LHV Garage Doors & Gates has two different suppliers for aluzinc doors, both of whom are the top suppliers and manufacturers in this industry in the Western Cape. Each supplier uses the same aluzinc material but the wood grain finish as well as the style of the raised and fielded panels used for the doors, differs between each supplier.

Supplier B installs a rubber seal at the bottom of the door.

Standard sizes of garage door openings for aluzinc tip up doors:

Door TypeSupplierMeasurements
Single aluzinc tip up doorSupplier A2500mm (w) x 2150mm (h)
Single aluzinc tip up doorSupplier B2500mm (w) x 2200mm (h)
Double aluzinc tip up doorSupplier A5000mm (w) x 2150mm (h)
Double aluzinc tip up doorSupplier B5000mm (w) x 2200mm (h)

Colour Options

All aluzinc doors have a smooth finish and come in 4 standard colours;

  • White
  • Charcoal
  • Brown
  • Bronze

Other colours are available at an extra charge, powder coated or spray painted onto the door.



Contact us for a free quote - 072 843 3116

Design Options

The aluzinc sectional overhead doors are available in either a horizontal slatted or raised and fielded (block) panels. It is however, important to note that if you opt for raised and fielded panels, and your door is not a standard size, you should consult your installer as to whether the blocks will be cut off, either on the sides or at the top of door, in which case, you should probably have a horizontal slatted door installed.

Aluzinc tip up doors have an exposed visible galvanised steel strip on the edges of the tip up garage door.

Requirements / Specifications

Tip up doors should be installed only if your garage is not on the boundary or if there is enough space in your driveway in front of the garage, this is because a tip up door tips up and out of your garage, which means that a car or anything for that matter, cannot be parked directly in front of the garage door.

Tip up garage doors need 200mm head room, from the bottom of the lintel to the bottom of the ceiling or rafters in the garage, for installation. When the aluzinc tip up door is in the open position the garage will lose +/- 100mm from its height.

Single tip up garage doors are installed with a hinge and tension spring mechanism on either side of the garage door. Each hinge contains a needle pin bearing. Double tip up doors should always have two springs attached to each hinge, in order to neutralise the weight of the double door.

Both these mechanisms neutralise the weight of the garage door, making it easy to manually move the door up and down.

For a tip up garage door to be installed properly, the garage needs to have 80mm wall nip space on either side, this is where the styles of the tip up door are installed. If this is not available, the style will become more visible.

Tip up garage doors require two styles for installation. A style is a tall cubed piece of timber, usually 69mm x 45mm wide, for single doors, 69mm x 69mm wide for double doors, spanning higher than the garage door opening height. Each style is installed on either side of the garage opening, on the inside of the wall.

The hinges and springs are then mounted onto the styles and the door attached to the hardware. The door should be +/- 30mm smaller than the opening size of the garage, to ensure that the door will clear the opening, when tipping up and open.

The styles also ensure that the door does not rub up against the garage walls, but rather can rub up against the wood of the styles, preventing any scratching and damage to the door.
A tip up garage door must have a minimum of 20mm overlap on the inside of the garage, at the top.
